Description

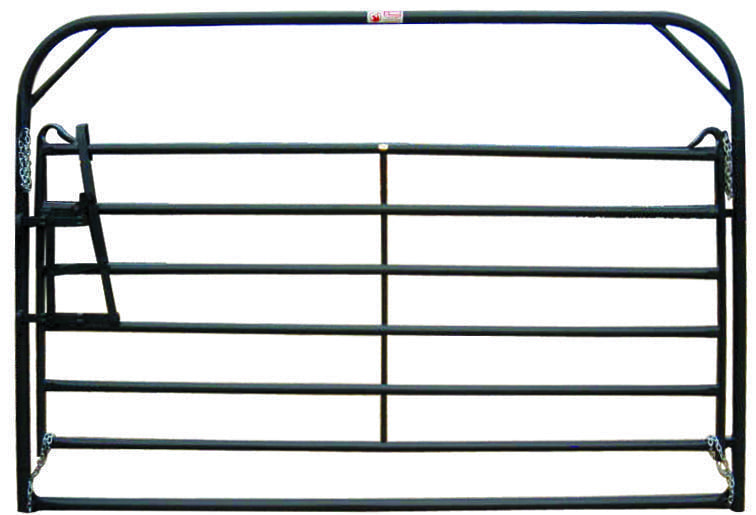

Tough Enough for Cattle, Safe Enough for Horses, these uniquely designed
bow gates are intended for use with Priefert’s Premier Panels. With a Bow Frame
height of 9′, these gates are ideal for “ride thru”applications, like providing
access to round pens, arenas, paddocks, and working corrals. These gates are
constructed from their patented Quadraform tubing to allow for maximum strength
and flexibility. Single piece vertical stays fitted through drilled rails
further increase the structural integrity, and the “Fishhook” top corners
increase the durability and safety of the gates. These bow gates utilize chain
connections, which offer versatility and ensure tight connections. Bow
Frame Height: 9′ Weight: 269 lbs. Number of Gate Rails: 6 Lever Type:
Double Piston Lever Latch 10′ & 12′ Bow Frames constructed from 2.375″ OD 11
gauge tubing Gates constructed from 1.66″ OD 16 gauge Quadraform tubing
Vertical stays constructed from 1.050” OD steel tubing, fitted through drilled
rails Architectural Grade Powder Coat Finish
